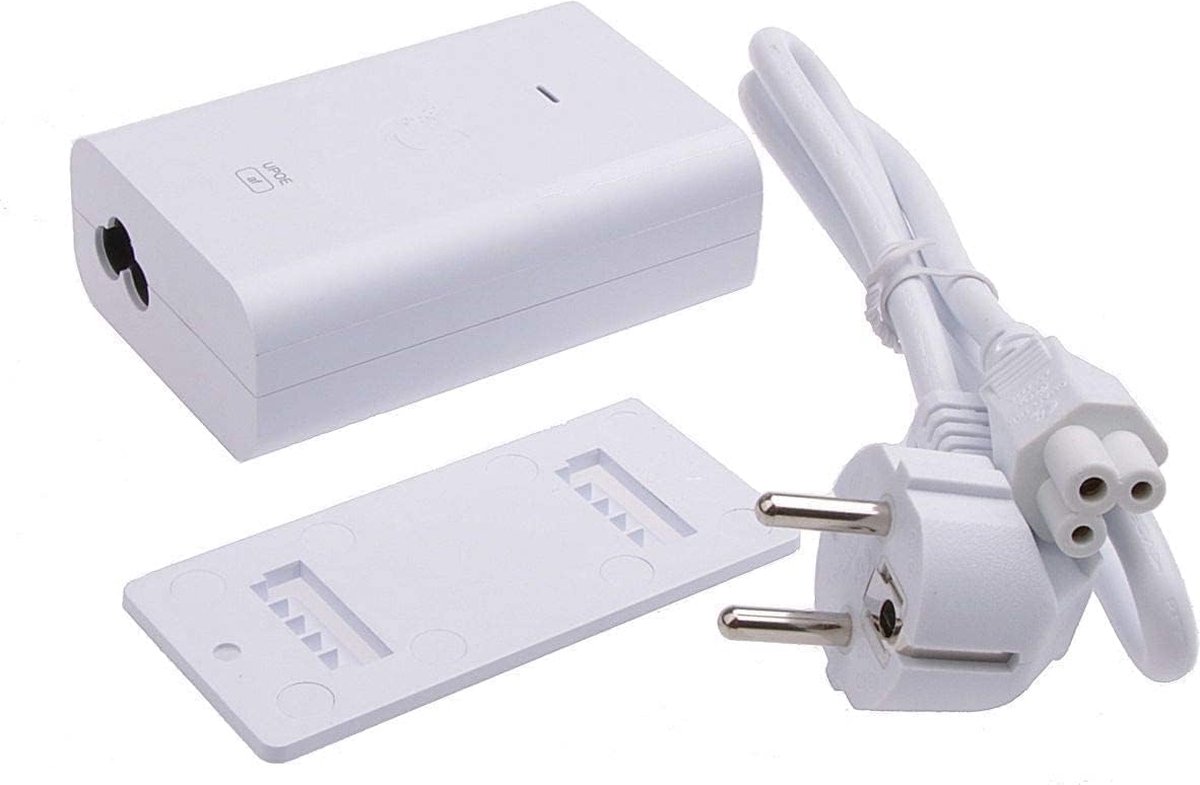

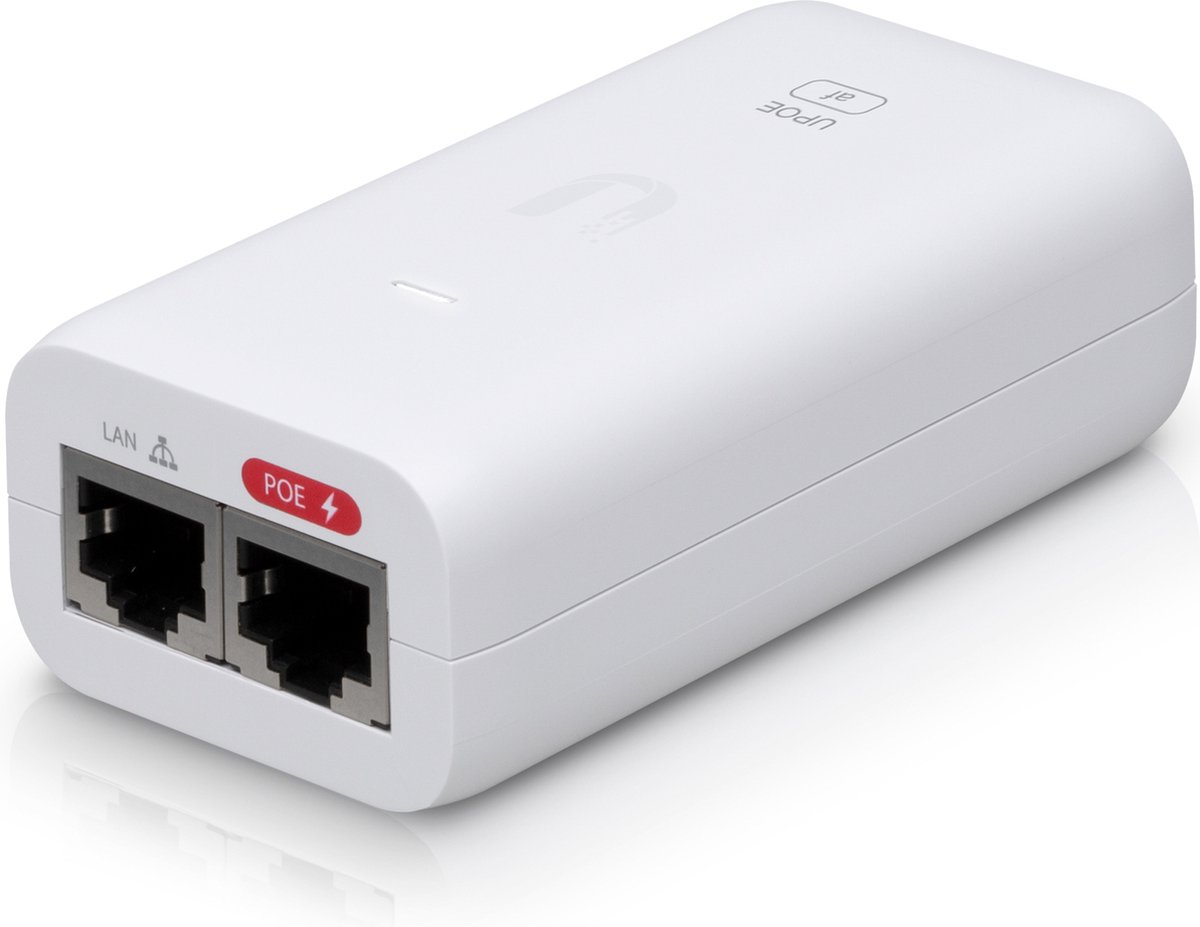

Ubiquiti U-POE-AF - PoE Adapter - PoE Injector - 48V/0.32A

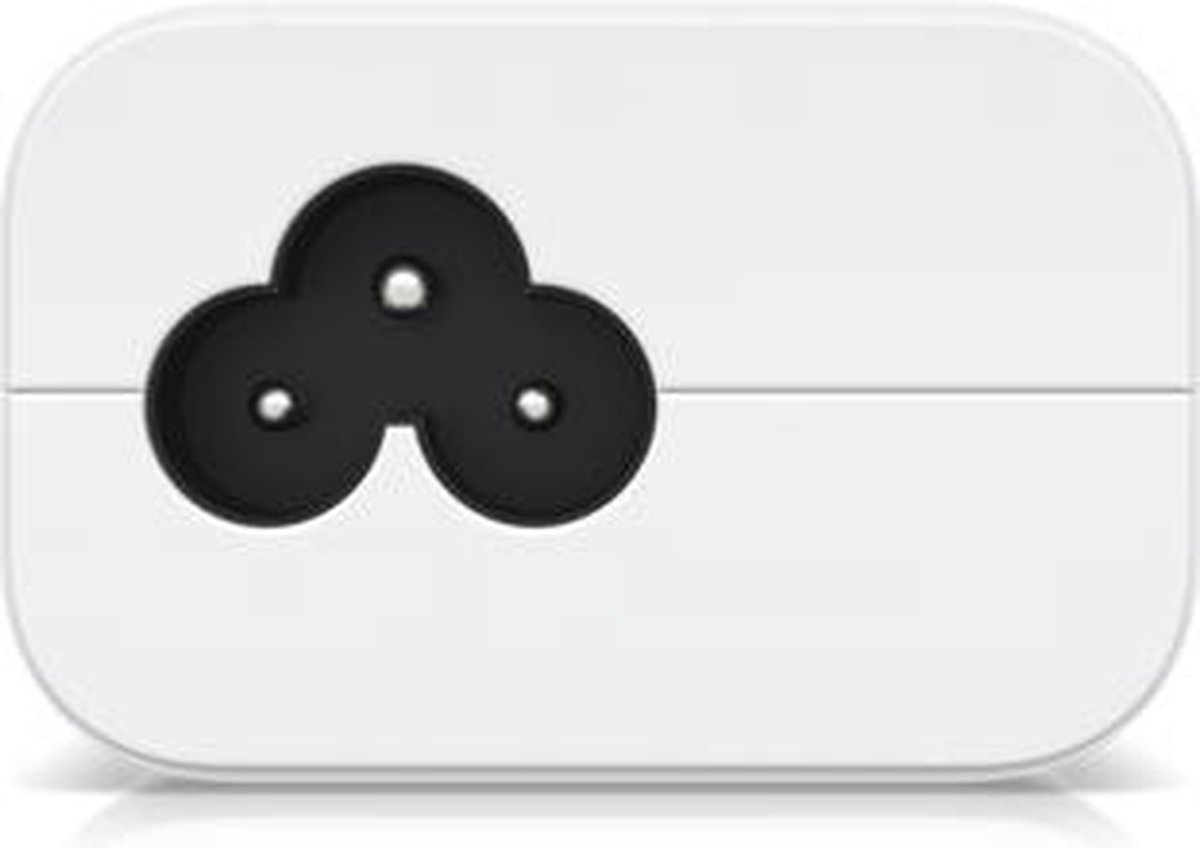

Ubiquiti U-POE-af Gigabit PoE injector EU 48V 0.5A DC Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices: Surge protection Clamping protection Maximum surge discharge Peak pulse current AC cable with earth ground U-POE-afDimensions86 x 46 x 33 mm (3.39 x 1.81 x 1.30)Weight100 g (3.53 oz)Output Voltage48VDC @ 0.32ALAN Activity IndicatorNoGigabit LAN PortYesRemote Reset CapabilityYesReset ButtonNoRated Voltage100-240VAC @ 50/60HzInput Current500mA @ 90VACInrush Current<100A Peak @ 25°CEfficiency84.25+%Output Ripple200mV p-pSwitching Frequency65 kHzLine Regulation≤ 3%Load Regulation≤ 5%2-Pair PoweringPins 4, 5 (+) and Pins 7, 8 (-)4-Pair Powering–Operating Temperature0 to 40° C (32 to 104° F)Storage Temperature-30 to 70°C (-22 to 158° F)Operating Humidity5 to 90% NoncondensingAC ConnectorIEC-320 C6Data IN / POERJ45 Shielded SocketSurge ProtectionDifference and Common ModeClamping Protection11V Data, 60V PowerMax. Surge Discharge1500A (8/20 μs) PowerPeak Pulse Current36A (10/1000 μs) DataShunt Capacitance<5 pF dataResponse Time<1 nsCertificationsCE, FCC, IC, UL
